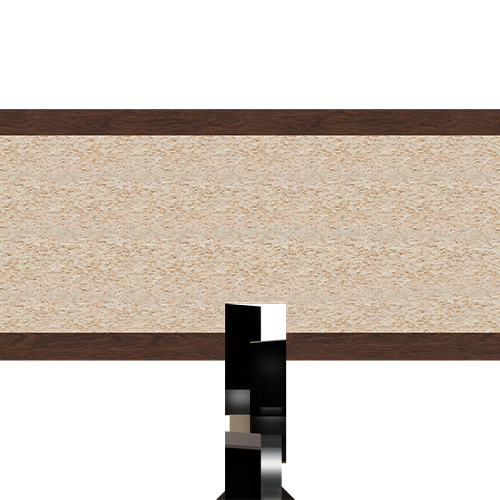

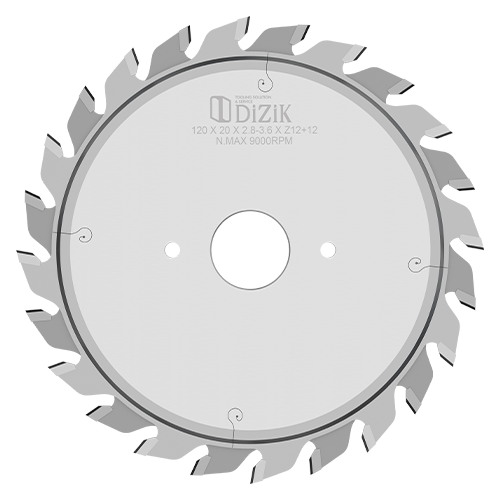

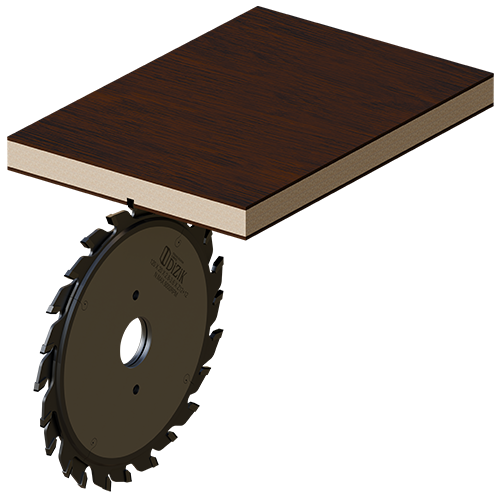

DiZiK’s Double Scorers Adjustable Scoring Saw eliminates chipping and burrs during main saw cutting by creating precise pre-grooves on laminated panels, HPL, veneers, and fireproof boards. This stackable dual-blade system uses interchangeable shims to adjust kerf width (3.0/3.2/3.5mm), ensuring perfect alignment with your main saw’s thickness (e.g., 3.2mm diamond main blade). The flat or arcuate PCD teeth (12+12Z or 10+10Z) enhance edge integrity, while the 2.8-3.6mm adjustable tooth width guarantees versatility across materials. Designed for 120/125mm diameter and 20/22mm bore, it fits precision sliding table saws (Altendorf, SCM, Homag) to replace outdated carbide systems. Achieve 30X longer lifespan, reduce material waste, and slash downtime with industrial-grade performance.
| Parameter | Specification |
|---|---|
| Outer Diameter | 120 mm / 125 mm |
| Bore Diameter | 20 mm / 22 mm |
| Adjustable Kerf | 3.0 mm / 3.2 mm / 3.5 mm (match main saw) |
| Tooth Width Range | 2.8 mm - 3.6 mm |
| Tooth Configuration | 12+12Z or 10+10Z (flat/arcuate teeth) |
| Tooth Material | PCD (Polycrystalline Diamond) |
| Compatible Machines | Altendorf, SCM, Homag, Felder, Martin |
1. Why adjust the kerf to match the main saw blade?
Precise kerf alignment (3.0/3.2/3.5mm) ensures the main saw follows the pre-groove perfectly, eliminating tear-out and reducing blade stress.
2. How does the shim system work?
Add or remove shims between the two blades to fine-tune kerf width, adapting to different main saw thicknesses or material requirements.
3. Can this replace traditional single-blade scoring systems?
Yes! The dual-blade design offers superior stability and precision, while PCD teeth outlast carbide by 30X, reducing replacements and costs.
4. What’s the advantage of arcuate teeth over flat teeth?
Arcuate teeth reduce lateral friction and distribute cutting force evenly, ideal for brittle materials like thin veneers or compact laminates.
5. Is this compatible with Homag CNC sliding table saws?
Absolutely. The 120/125mm diameter and 20/22mm bore fit most Homag, Altendorf, SCM, and Felder machines.
Upgrade to DiZiK’s Double Scorers for flawless pre-grooving. Inquiry now: Diamond Scoring Blades Collection.
Key Features Highlighted:
Shim-adjustable kerf (3.0/3.2/3.5mm) to match main saw blades.
Stackable dual-blade system for precision and stability.
30X lifespan vs. carbide scoring blades.
Flat/arcuate PCD teeth for anti-chip performance on laminates.
Universal compatibility with Altendorf, Homag, SCM, Felder.
